Steel Door Systems — Hinged & Pivot
Steel & Glass Hinged Doors
Single, Double & Pivot Configurations
The most versatile steel door system in the MetaliX range. Single hinged, double hinged, and hydraulic pivot configurations — all made to your exact opening, supplied and installed across the Midlands by Old English Doors.
Request a Free Quote View SystemsThe Hinged Door System
Why Hinged Steel Doors Work in Almost Every Interior
Of the three MetaliX door systems — hinged, sliding, and bifold — the hinged system is the most widely applicable and the most commonly specified for residential projects across Nottingham, Birmingham, Derby, Leicester, and the wider Midlands. It requires no ceiling track, no floor guide rail, and no structural preparation beyond the opening itself. A correctly specified steel hinged internal door opens and closes like any other door in the property, but does something no timber or composite door can match: its slender black steel frame and clear glass panel divide two spaces while keeping them visually connected — and it does this in any home, from a Victorian terrace in Nottingham's Sherwood to a new-build kitchen extension in Solihull.
The hinged range covers four distinct configurations: single hinged with a classic lever handle (SH-CL), single hinged with a custom steel handle (SH-BC), double hinged with a classic lever handle (DH-CL), double hinged with a custom steel handle (DH-BC), and pivot systems (SP and DP) for larger, more architectural statement openings. A double-action configuration (DHA-CL) is also available where the door needs to open in both directions. Understanding which configuration suits your specific opening is what the site visit is for — we discuss traffic flow, opening dimensions, and design intent before anything is ordered.
All MetaliX steel hinged doors are made to your exact dimensions — width from 600mm to 2400mm, height from 1800mm to 3000mm — in 6mm tempered safety glass as standard, with welded steel hinges and hardware from named European suppliers throughout. We supply and install steel hinged doors across Nottingham, Derby, Leicester, Birmingham, Coventry, Wolverhampton, Northampton, Warwick, Solihull, and Worcester. If you are searching for steel internal doors near you within the Midlands, contact us for a free site visit — we do not charge for consultations or quotes. Available with optional sliding and bifold alternatives if your opening calls for a different system.
System 01 — SH-CL / SH-BC
Single Hinged Steel Doors
The single hinged steel door is the foundation of the MetaliX range and the natural starting point for most residential projects across Nottingham, Derby, Birmingham, and the wider Midlands. It fits any standard internal opening from 600mm wide and operates exactly as a conventional door — no track, no guide, no structural modification. The difference is entirely in the material and the visual effect: a black steel frame with clear glass, dividing a hallway from a kitchen or a living room from a dining space while keeping the light moving through both.
Two handle configurations are available. The SH-CL uses a classic lever handle — the TUPAI 2275 Q press handle from Portugal, available with magnetic latch or latch bolt lock, in AGB Italy finishes (Black, White, Chrome, or Satin). The SH-BC uses a custom-made steel handle in a bolder, more industrial aesthetic that suits spaces where the handle itself is intended to be part of the design statement. Both configurations use welded steel hinges and are available with optional soft-close mechanism.
A note on soft-close: the knee-joint office closer is the standard soft-close option. Screw-on hinges with integrated soft-close are also available but are only produced in silver finish — they cannot be painted. If a fully black finish throughout is essential to your project, specify the knee-joint closer rather than the screw-on hinge soft-close option, and discuss this with us at consultation.

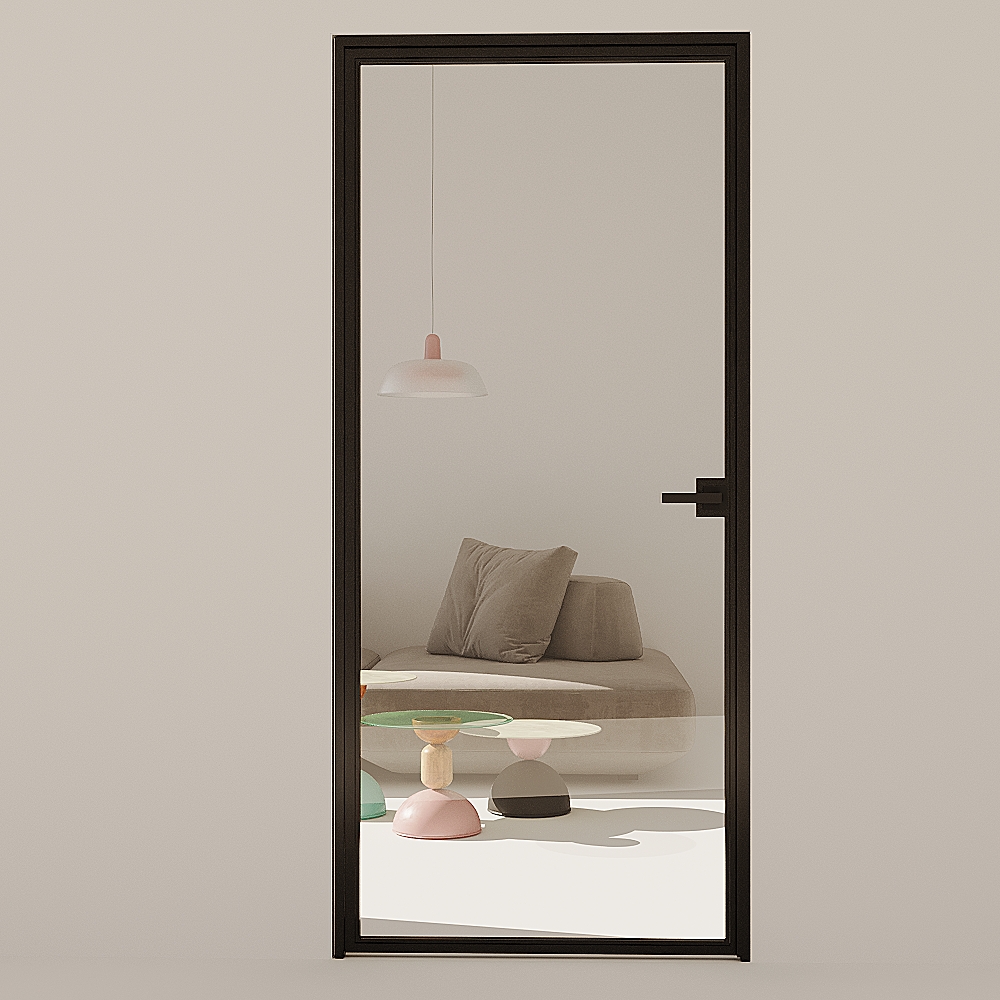

Single Hinged — Classic Handle
TUPAI 2275 Q classic lever handle from Portugal. Clean, architectural lever design that suits both contemporary and period interiors. Most popular configuration for residential projects.
- Handle TUPAI 2275 Q, Portugal
- Lock Magnetic or latch bolt
- Lock finish Black / White / Chrome / Satin
- Additional options WC lock, PZ cylinder, stopper
Single Hinged — Steel Handle
Custom-made steel handle — screwed, welded, hidden, or corner welded configurations available. A bolder, more industrial handle design for spaces where the hardware itself is a feature.
- Handle Custom steel, own production
- Lock Ball latch
- Additional options WC lock, PZ cylinder, stopper
- Flush strike plate Available on request
System 02 — DH-CL / DH-BC

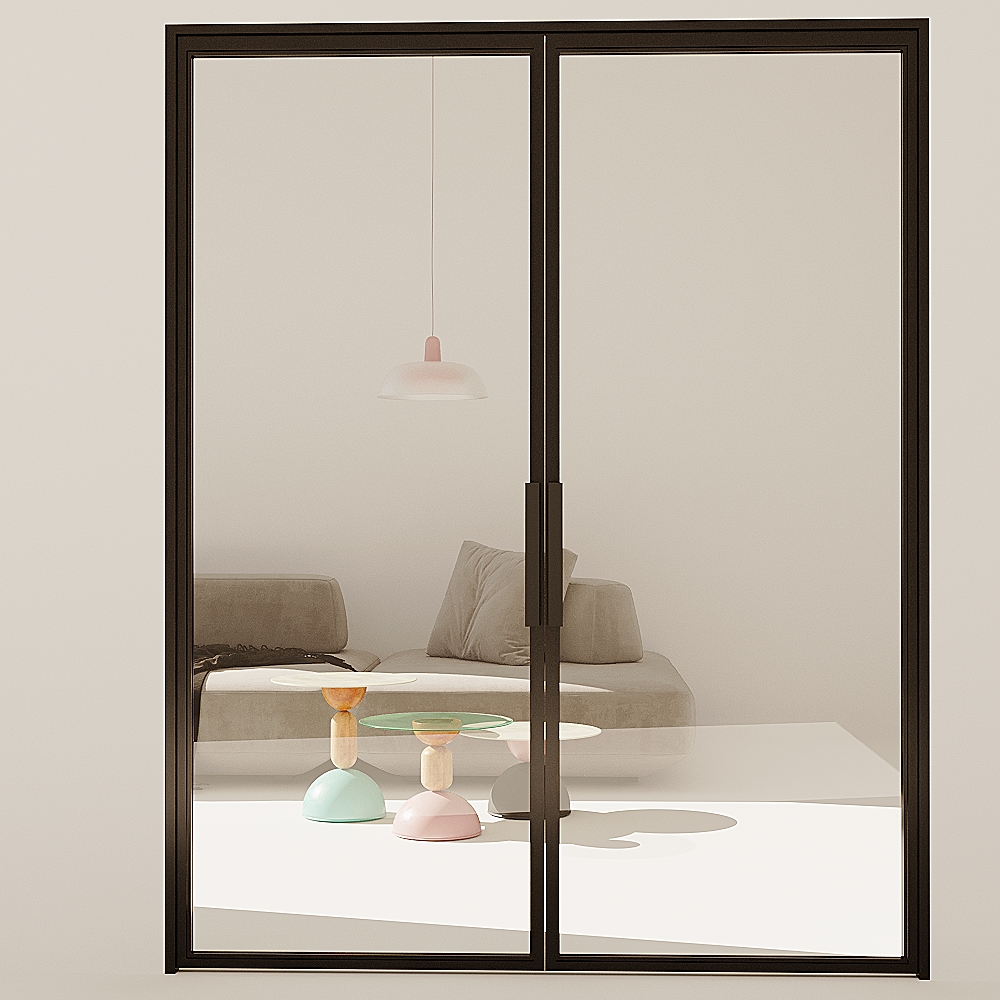

Double Hinged Steel Doors
Where a single door would feel undersized relative to the opening — or where the visual impact of a full pair of steel and glass panels is what the space calls for — double hinged doors are the answer. Both leaves swing outward from a central meeting point, creating a wide, dramatic passageway without requiring any ceiling track or floor guide rail. When one leaf needs to stay fixed for everyday use, one side can be fitted with a flush strike plate, allowing only the active leaf to open while the passive leaf remains fixed.
Double hinged configurations span openings from 600mm to 2400mm wide, making them suitable for anything from a generous standard doorway to a wide structural opening between a kitchen and dining room. As with single hinged systems, two handle options are available: DH-CL with the TUPAI 2275 Q classic lever, and DH-BC with a custom steel handle. Double swing doors with a ball latch allow both leaves to be opened simultaneously — if one leaf has a flush strike plate, that leaf must be opened first before the second leaf will open.
Double Hinged — Classic Handle
TUPAI 2275 Q classic lever on both active leaves. One side can be fixed via flush strike plate for single-leaf everyday operation.
- Handle TUPAI 2275 Q, Portugal
- Lock Magnetic or latch bolt
- Fixed leaf Via flush strike plate
- Additional options WC lock, PZ cylinder, stopper
Double Hinged — Steel Handle
Custom-made steel handles on both leaves. Industrial aesthetic. Ball latch as standard — both leaves can open simultaneously.
- Handle Custom steel, own production
- Lock Ball latch
- Simultaneous open Yes (ball latch)
- Additional options WC lock, PZ cylinder, stopper
System 03 — SP / DP
Pivot Steel Doors
Pivot doors are the most architecturally ambitious configuration in the MetaliX hinged range and are increasingly specified for large open-plan interiors in Birmingham, Nottingham, and Solihull new-build and renovation projects. Where a conventional door is hung on hinges along one vertical edge, a pivot door rotates on a floor-mounted hydraulic pivot hinge — the JNF IN.05.204 system from Portugal — positioned 80mm in from the door's edge. This offset pivot creates a distinctive opening motion and allows the door to swing to a full 180 degrees, or to be held open at exactly 90 degrees using the built-in hold-open function.
The practical implications of pivot geometry are important to understand before specifying. The 80mm pivot axis offset means that for an 800mm door width, the usable passage width is only 700mm — fixed and non-adjustable. For a 1600mm double pivot, usable passage width is 1400mm. This is not a disadvantage; it is simply the engineering reality of pivot door geometry, and it should be accounted for at the planning stage. We discuss this at every site visit where a pivot is being considered.
Soft-close is built into the JNF pivot mechanism itself — it is not an add-on. Two closing speeds with adjustment are available. The door does not require any lock by default; handles can be custom steel or specified without handles entirely for a completely minimal aesthetic. Note that the hardware is not designed for water exposure — pivot doors are not suitable for shower cabins or wet room applications.

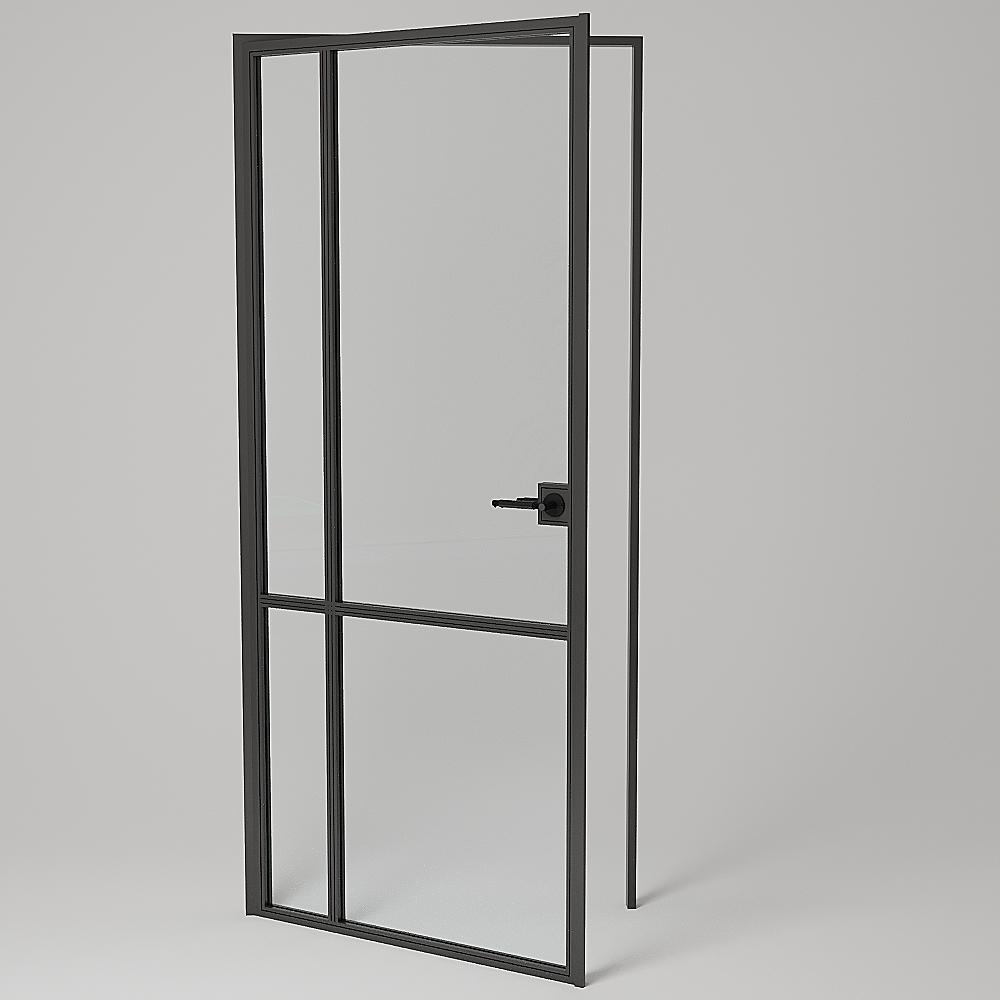

Single Pivot
Single leaf pivot door, 600–1000mm wide. Hydraulic JNF floor-mounted pivot. Custom steel handle or no handle. Soft-close built in. No lock included by default.
- Pivot hinge JNF IN.05.204, Portugal
- Handle Custom steel or none
- Soft-close Built in (2 speeds)
- Max weight 65kg
Double Pivot
Two-leaf pivot configuration for wider openings. Each leaf independently pivoted. 1200–2000mm total width. Creates dramatically wide passageways for large open-plan interiors.
- Width per leaf 600–1000mm
- Pivot hinge JNF IN.05.204 per leaf
- Handle Custom steel or none
- Usable passage Total width minus 160mm

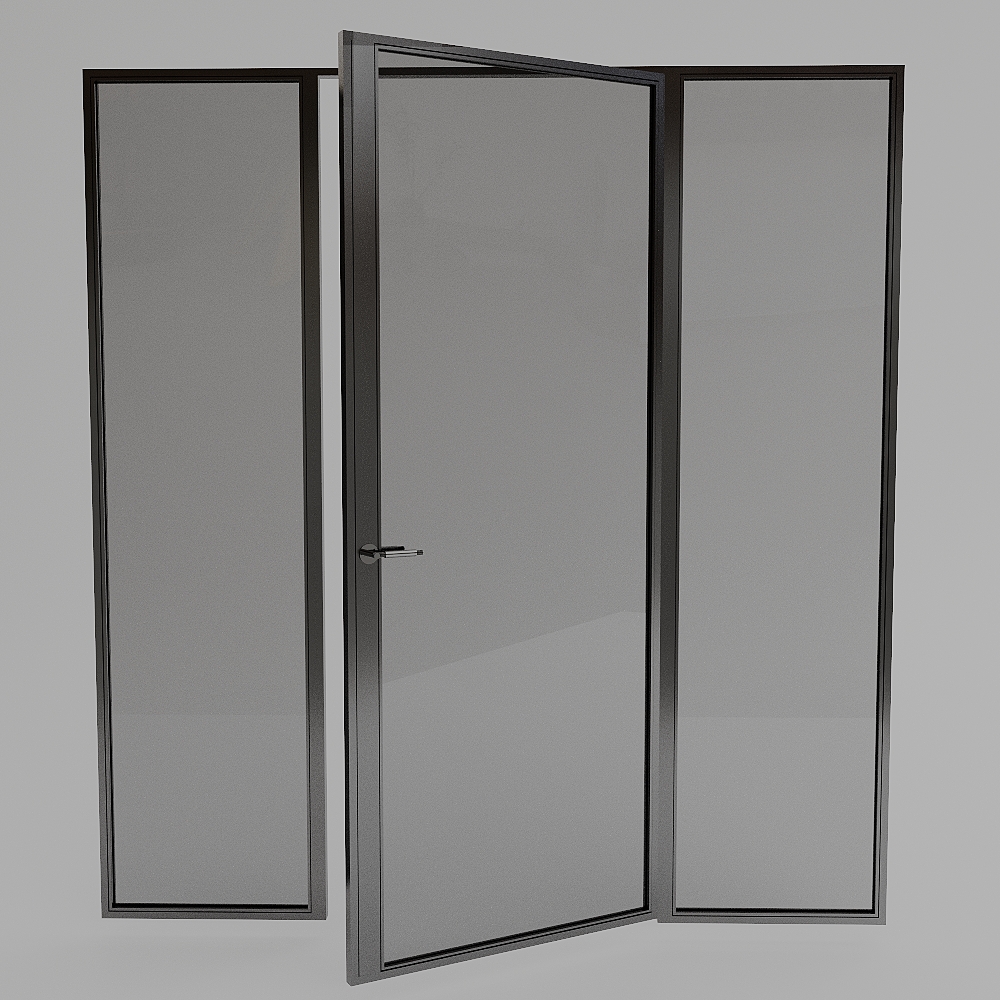

System 04 — DHA-CL
Double Action Steel Doors
The double action configuration allows the door to swing in both directions — open inward and outward from the same frame. This is a less common requirement in residential settings but is specified in applications where two-directional traffic needs to flow through a single opening without the door needing to be held open: between a kitchen and a dining room in a catering or hospitality context, between a utility space and a living area in a busy family home, or wherever the direction of approach is not predictable.
The DHA-CL uses welded steel hinges and the classic TUPAI 2275 Q handle, available with magnetic lock or latch bolt. It spans openings from 900mm to 1800mm wide. Soft-close is available as an optional addition. As with all MetaliX hinged systems, it is not suitable for shower cabins or wet room applications, and the hardware is not designed for water exposure.
Installation — Technical Notes
What to Know Before Your Site Visit
These are the installation considerations we discuss at every site visit. Raising them early — before the door is ordered — avoids any surprises during installation.
Baseboard & Moulding Trimming
Existing skirting boards and mouldings at the door opening will typically need to be trimmed or removed to allow flush installation within or against the wall reveal. This can be kept or trimmed based on your preference — discuss at site visit.
Install Baseboards After the Door
If new skirting boards or mouldings are being fitted as part of a wider renovation, always install them after the door structure is mounted — not before. The door frame needs to go in first, and skirting is fitted around it.
Soft-Close Finish Note
The knee-joint office closer (soft-close type 1) is available in any finish. Screw-on hinges with soft-close (type 2) are only produced in silver and cannot be painted. If a fully black finish is essential, specify the knee-joint closer.
Pivot — 80mm Axis Offset
Pivot doors have an 80mm offset from the door edge to the pivot axis. For an 800mm door, usable passage width is 700mm. For a 1600mm double pivot, usable passage is 1400mm. This is fixed and cannot be adjusted — confirm measurements at site visit.
Max Frame Size — Paint Furnace
Maximum single frame size is 3000mm x 1800mm, determined by the paint furnace capacity. Frames larger than this cannot be painted as a single unit. Very large openings can be accommodated with a split frame configuration — discuss at consultation.
Not Suitable for Wet Areas
MetaliX steel door hardware is not designed for water exposure. These doors are not suitable for shower cabins, wet rooms, or any application where the hardware will have direct or regular contact with moisture or steam.
Specified Hardware
Named European Hardware on Every Door
Every component fitted to MetaliX hinged doors is sourced from named manufacturers. Not generic. Not unspecified. Named, with country of origin.
Classic lever handle on CL configurations. Press handle design. Available with magnetic latch or latch bolt. AGB Italy lock bodies in Black, White, Chrome, or Satin.
Hydraulic pivot hinge for SP and DP systems. Soft-close built into mechanism. Rotation to 180°. Hold-open at 90°. Floor-mounted, ±3mm adjustment. Max 65kg per leaf.
Magnetic and latch lock systems used with TUPAI handles. Available in Black, White, Chrome, and Satin finishes. Selection subject to availability and project specification.
BC configurations use custom-made steel handles produced in the MetaliX factory. Available screwed, welded, hidden, or corner-welded. Standard height or full-height panel options.
Which System Is Right for You?
Choosing Between Single, Double, and Pivot
Choose Single Hinged if...
Your opening is a standard internal doorway between 600mm and 1200mm wide. You want the simplest installation with no structural preparation. The door will have predictable traffic from one direction. This is the most common configuration for residential use — hallway to kitchen, sitting room to dining room.
Choose Double Hinged if...
Your opening is wider than 1200mm, or you want a pair of doors that open as a set for occasional full-width clearance. You want visual symmetry — two equal glass and steel panels meeting at a central point. One leaf can be fixed for everyday use. No track or ceiling modification required.
Choose Pivot if...
You want a visual statement as much as a functional door. The opening is in a large, open-plan space where the pivot's distinctive swing motion will read as an architectural feature rather than just a door. You are comfortable with the 80mm usable passage reduction and the floor-mounted hinge requirement.
Choose Double Action if...
Traffic needs to flow through the opening in both directions without the door needing to be held open or propped. More common in catering, hospitality, or high-traffic domestic applications than standard residential rooms. Specify DHA-CL and discuss exact width requirements at site visit.
Common Questions
Frequently Asked Questions — Hinged Steel Doors
What is the difference between SH-CL and SH-BC?
SH-CL uses the TUPAI 2275 Q classic press lever handle from Portugal — a clean, architectural lever that suits both period and contemporary interiors. SH-BC uses a custom-made steel handle produced in the MetaliX factory — bolder, more industrial in character. The underlying door, frame, glass, and hinges are identical between both configurations. The choice is purely a matter of handle style and the aesthetic you want at the point of contact with the door.
Can I have a steel hinged door with soft-close?
Yes — soft-close is available as an optional addition on all hinged configurations. There are two types: a knee-joint office closer (available in any finish) and screw-on hinges with integrated soft-close (silver only, cannot be painted). If a fully black finish throughout is essential, specify the knee-joint closer and discuss this at consultation.
How wide can a single hinged steel door be?
Single hinged doors (SH-CL, SH-BC) span openings from 600mm to 1200mm wide. For openings wider than 1200mm, a double hinged configuration (DH-CL or DH-BC) is the correct system — spanning up to 2400mm total. Pivot systems span single-leaf openings from 600mm to 1000mm, or double-leaf up to 2000mm.
What is a pivot door and how does it differ from a hinged door?
A conventional hinged door rotates on hinges fixed to one vertical edge of the frame. A pivot door rotates on a floor-mounted hydraulic hinge positioned 80mm in from the door's edge — not at the edge itself. This offset creates a distinctive swing motion where the door moves in both directions from the pivot point, not just outward from one edge. It allows larger, heavier door panels to operate smoothly, creates a wider apparent passageway when open, and can hold open at 90 degrees. The trade-off is that the 80mm offset reduces usable passage width by that same 80mm.
Do steel hinged doors need any structural preparation?
Single and double hinged doors require no structural preparation beyond the existing door opening. Unlike sliding and bifold systems, there is no ceiling track, no guide rail, and no reinforcement plate required. The door frame is installed within or flush with the existing wall reveal, and skirting boards or mouldings are trimmed around it. This is the primary practical advantage of hinged systems over other configurations — the installation is simpler, faster, and involves less disruption to the surrounding room.
Do you install steel hinged doors near me?
If you are based in Nottingham, Derby, Leicester, Birmingham, Coventry, Wolverhampton, Northampton, Warwick, Solihull, or Worcester — yes, we install in your area. We also cover the surrounding counties: Nottinghamshire, Derbyshire, Leicestershire, the West Midlands, Northamptonshire, and Warwickshire. Contact us with your postcode and we will confirm coverage and arrange a free site visit. We do not charge for consultations or quotes.
Can the glass be something other than clear?
Yes. 6mm clear tempered glass is the standard specification, but optional glass types include fluted (vertical reeded texture), krizet (fine patterned), satin (matte frosted, high privacy), bronze (warm tint), graphite (dark smoke tint), and laminated combinations. Textured glass types should not be combined with each other — pair one textured type with clear or smooth glass for the best result. Discuss glass options at consultation and we will advise on what works best for your specific opening and lighting conditions.
Steel Hinged Doors Near You
Steel Hinged Door Installations Across Nottingham, Birmingham and the Midlands
Old English Doors supplies and installs MetaliX steel hinged doors from our workshop in Nottingham across the whole of the Midlands and beyond. Whether you are looking for steel internal doors in Nottingham for a period terrace in West Bridgford or Mapperley, a steel pivot door for a Birmingham kitchen extension in Edgbaston or Moseley, or a double hinged steel door for a Derby new build in Littleover or Allestree — we visit, measure, specify, and install ourselves. One team throughout.
Steel hinged doors work across every property type we serve. In Nottingham and Leicestershire, they are increasingly specified for Victorian and Edwardian terrace renovations where an open-plan kitchen-diner needs a defined boundary without losing light. In Birmingham's period suburbs — Edgbaston, Harborne, Bournville — they sit naturally against original brickwork and period cornicing while introducing a contemporary material contrast. In Derby's conservation areas and the newer residential developments around Coventry, Wolverhampton, Solihull, and Worcester, they serve both period and new-build contexts equally well.
If you are searching for steel internal doors near me and you are based anywhere across the East or West Midlands, Northamptonshire, or Warwickshire — we cover your area. Contact us for a free, no-obligation site visit and we will advise on the right configuration for your specific opening and property type.
Steel hinged doors installed across:
Nottingham Derby Leicester Birmingham Coventry Wolverhampton Northampton Warwick Solihull Worcester Sutton Coldfield Manchester St AlbansFree Site Visit & Quote
Ready to Discuss Your Hinged Steel Door Project?
Every project starts with a free site visit. We visit your property, assess the opening, advise on the right configuration — single, double, or pivot — and give you an accurate, no-obligation quote. No guesswork. No pressure.
Request a Free Quote
